Case Study: Saving an 18-Year-Old Worcester Greenstar 30 CDi from a Major Hydraulic Leak

Location: Grimsby (DN32)

Appliance: Worcester Bosch Greenstar 30 CDi Combi Boiler

Installation Year: 2008 (~18 Years in Service)

Initial Fault: Persistent boiler leak and visible water pooling beneath the casing

Diagnosis: Leaking Automatic Air Vent (AAV) and cracked return manifold

Outcome: Full hydraulic strip-down, genuine parts fitted, Gas Safe 26.9 safety re-commissioning completed

The Job Overview: Why Age Isn't Always the End of the Road

In the heating industry, a domestic combi boiler is generally considered "old" once it crosses the 10 to 15-year threshold. At this age, many homeowners are routinely told by national installation firms that their boiler is beyond economical repair and must be replaced immediately.

This 2008 Worcester Greenstar 30 CDi had logged roughly 18 years of service. Despite its age, the combustion chamber, main heat exchanger, and electronics remained operational and working. The homeowner called us out to investigate a persistent dripping through the bottom casing.

Diagnosis: Pinpointing the Twin Leaks

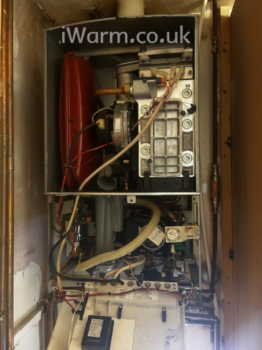

Upon removing the outer casing and control panel cover, the leak source was immediately obvious:

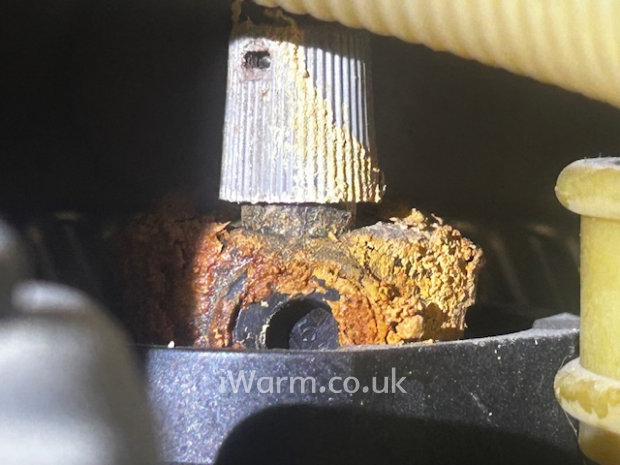

1. Leaking Automatic Air Vent (AAV): The brass AAV on the internal pump housing had degraded, continuously weeping heating water down the side of the internal assembly.

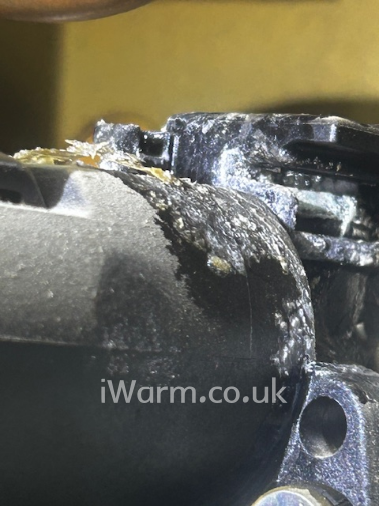

2. Cracked Return Manifold: Constant thermal cycling over nearly two decades had compromised the plastic return manifold block, opening up a hairline stress fracture along the port casting.

Worcester Parts Support vs. The Competition

This boiler repair highlighted a massive reason why we often recommend Worcester Bosch boilers over budget alternatives: long-term parts supply chains.

Earlier this week, we were asked to attend a Biasi Riva combi of a similar vintage. While that repair was technically straightforward, the manufacturer had long since discontinued critical functional spares, leaving replacement as the only viable route.

Worcester Bosch, by contrast, continues to support even legacy early-generation Greenstar appliances with readily available genuine parts. Because parts for this 30 CDi were available through local plumbers merchants, the customer was spared an unexpected £2,500+ boiler replacement.

The Repair: An Involved Hydraulic Block Overhaul

While the parts were accessible, replacing a Worcester return manifold is widely considered one of the tightest, most involved hydraulic repairs on modern condensing combi boilers:

• Complete Hydraulic Teardown: The return manifold cannot be swapped in isolation. The entire hydraulic assembly; including the pump, plate heat exchanger, diverter valve and flow turbine needed draining / uninstalling.
• Gas Valve Disconnection: Due to the compact packaging inside older Greenstar chassis, clearing enough clearance to extract the return manifold requires breaking into the gas train and removing the gas valve assembly.
• Tight Clearances & Chassis Edges: These older Worcester chassis are notorious in the trade for zero knuckle clearance and razor-sharp pressed-metal internals. (True to form, completing the job came with the customary collection of workshop nicks and scraped knuckles.)
• Complete Seal Replacement: When disturbing a hydraulic block of this vintage, reuse of old rubber is non-negotiable. Every single disturbed connection was rebuilt with fresh, silicone-lubricated O-rings to ensure a watertight seat against the pump housing and pipework tails.

Re-Commissioning & Gas Safe 26.9 Verification

Because the gas valve was disturbed during disassembly, standard plumbing checks are not enough. We carried out a full suite of regulatory safety checks in accordance with Gas Safety (Installation and Use) Regulation 26.9:

1. Gas Tightness Test

A complete low-pressure tightness test was conducted across the installation:

• Starting Pressure: 20.5 mbar
• Test Duration: 2 minutes
• Ending Pressure: 20.5 mbar
• Permissible Drop: 0.0 mbar (Pass)

2. Flue Gas Analysis (FGA)

Once re-pressurised to 1.2 bar cold and purged through the new AAV, the boiler was fired across both minimum and maximum operating rates to check combustion efficiency and burner integrity:

(Combustion readings verified against manufacturer data plates and recorded on the job sheet.)

The Result

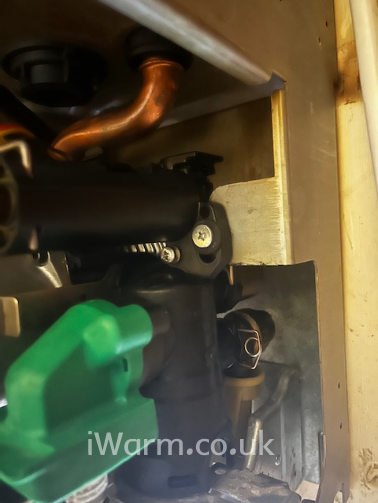

With the cracked return manifold replaced, fresh O-rings seated, and safety testing signed off, this 18-year-old boiler is back to holding static pressure with zero leaks.

Instead of being forced into a costly boiler replacement, the homeowner got an honest, expert-level repair that extends the lifespan of their heating system for another season of reliable service.
