Error F 22 on Vaillant Boilers
The F22 fault code on a Vaillant boiler indicates a low-water-pressure lockout, triggered when system water drops below the safety threshold needed to prevent a dry fire. This lockout activates as soon as water pressure falls to ≤0.6 bar on ecoTEC Plus and Pro models, or ≤0.5 bar on legacy turbotec units. The fault code frequently appears across ecoTEC Plus (825/832), ecoTEC Pro 24/28, and ecoFIT Start model families when water depletes. Your boiler is safe and not in immediate danger, giving you time to repressurise or schedule Vaillant boiler servicing in Grimsby.
The 5 Most Common Causes of an F 22 Vaillant Boiler Error
1. Low System Pressure After Summer Layoff
System pressure naturally bleeds down over extended idle periods, leaving the circuit below the required 1.0 bar operating minimum when heating demands resume.
- Triggers an October - November seasonal spike in F 22 Vaillant boiler fault call-outs across Cleethorpes and Immingham when heating turns on.
- Pressure gauge reads under 0.6 bar cold, causing an immediate safety lockout before burner ignition.
2. Expansion Vessel Diaphragm Failure
Internal rubber diaphragms degrade after 7–10 years, causing the expansion vessel to lose its air pre-charge and fill entirely with heating water.
- System pressure spikes rapidly toward 3.0 bar during heating and drops to zero when cold.
- Requires vessel repressurisation or emergency boiler repair in Cleethorpes to stop persistent lockouts.
3. Pressure Relief Valve Limescale Scoring
Debris or limescale passes through the 3-bar pressure relief valve, scoring the valve seat and preventing it from closing fully.
- Grimsby’s 180–220 mg/L CaCO₃ hard-water supply accelerates mineral scoring on internal seating surfaces.
- Continuous water weeping or dripping from the external 15mm copper discharge pipe outside the property.
4. Stuck Auto-Air Vent
The automatic air vent float mechanism sticks open inside the boiler, allowing primary heating water to bleed out alongside trapped air.
- White crusty mineral deposits or active water weeping around the internal pump housing.
- Slow pressure loss over several days without any visible leaks on radiator valves or pipework.
5. Micro-Leak at Radiator Valve or Pipe Joint
Pin-hole corrosion or weeping compression joints release small volumes of water that evaporate on warm pipework before forming noticeable puddles.
- Green copper oxide staining around radiator valves or dark marks on floorboards.
- Gradual drop in system pressure over weeks, eventually falling below the 0.6 bar lockout threshold.

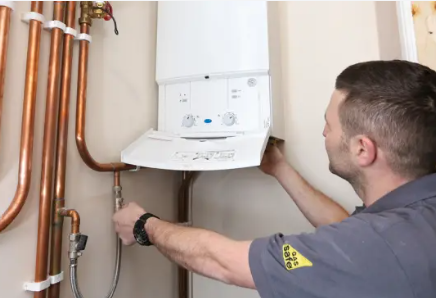

Can You Fix an F22 Code Yourself? (Repressurising via the Filling Loop)
- Locate the filling loop: Look underneath the main boiler casing on ecoTEC Plus models, or check for the side-mounted integral loop on ecoFIT Start units.
- Check connections: Ensure both end fittings of the flexible silver hose are threaded securely onto the double-check valve and cold water intake.
- Open the valves: Turn the blue or black lever handles a quarter-turn until you hear cold mains water entering the heating system.
- Monitor the gauge: Watch the digital display or front analogue pressure gauge until it reaches 1.2–1.5 bar, then turn both levers back to off.
- Reset the unit: Press and hold the 'Reset' button (flame icon) for five seconds to clear the F22 lockout.
If the F22 code returns within 48 hours, an active leak or internal component failure is constantly dropping system pressure. Continuous pressure loss requires physical diagnosis from Gas Safe registered engineers in Grimsby to prevent secondary pump or heat exchanger damage.
When to Call iWarm: Recurring F22 & Component-Level Repair
If your F22 code returns after repressurising, the issue stems from an active component-level failure rather than routine operational water loss. As Gas Safe registered and Vaillant-accredited engineers, iWarm pinpoints the exact root cause on-site using targeted diagnostic procedures. We execute a digital manometer pressure-decay test to isolate hidden circuit leaks, perform a Schrader valve check on the expansion vessel to verify internal diaphragm integrity, and carry out an inhibitor concentration test to protect your system from corrosion. Serving Grimsby, Cleethorpes, Immingham, Louth, Brigg, Caistor, and Market Rasen, our local team arrives equipped with genuine Vaillant spare parts for immediate resolution.
Call our team directly or book a Vaillant boiler repair online to restore your heating.
Typical F22 Repair Costs in Grimsby & North Lincolnshire
Resolving a low-pressure lockout requires transparent pricing based on the specific failing component. All iWarm pricing is fixed upfront before any physical work begins, with no hidden callout surcharges added to your final bill.
- Diagnostic visit + repressurise: £70–£90
- Expansion vessel recharge: £85–£120
- Auto-air vent replacement: £95–£140
- Pressure relief valve (PRV) replacement: £130–£185
- Full power-flush + inhibitor: £380–£520
Unresolved component leaks lead to repeated water pressure drops, boiler lockouts, and potential internal damage. Routine maintenance through an annual boiler service in Louth (£85–£110) catches passing valves or lost air charges early, preventing the majority of F22 fault recurrences across North Lincolnshire.
Preventing F22: Annual Servicing & System Inhibitor
Grimsby and Cleethorpes hard water (180–220 mg/L CaCO₃) accelerates limescale accumulation inside pressure relief valves and heat exchangers, leading to premature seating failure and weeping joints. Dosing primary heating circuits with high-grade inhibitor—such as Fernox F1 or Sentinel X100 at a 1 % concentration—prevents internal corrosion and keeps seating surfaces clean. Furthermore, internal expansion vessel diaphragms typically last 7–10 years and should be static pressure-tested during every service to catch air charge loss before F22 lockouts occur. Arranging boiler servicing in Immingham through iWarm's annual service covers all local towns from Immingham to Market Rasen.
iWarm: Your Local Vaillant Boiler Specialists
Based in Grimsby, iWarm is a Gas Safe registered [Registration Number] and Vaillant-accredited heating specialist. We provide dedicated fault diagnostics and repairs across Grimsby, Cleethorpes, Immingham, Louth, Brigg, Caistor, and Market Rasen. To minimise system downtime, we offer same-day callouts for F22 lockouts and related code errors. All work is backed by transparent, fixed pricing agreed upfront before any repair begins, with zero hidden fees. To restore your heating, contact iWarm for a Vaillant boiler repair online. Call [phone number] or book online to resolve your F22 fault today.
Related Vaillant Fault Codes
- F28 Code – Ignition failure caused by gas supply issues or faulty electrodes.
- F29 Code – Flame loss during operation, usually caused by frozen condensate pipes.
- F75 Code – Pressure sensor fails to detect pump operation upon burner ignition.
Frequently Asked Questions:
F22 indicates the boiler's PCB has detected system water pressure at or below 0.6 bar, triggering a dry-fire lockout. The boiler shuts down to protect the heat exchanger. Repressurising to 1.2–1.5 bar via the filling loop usually clears the code, but a recurring F22 points to a component fault such as a failed expansion vessel or leaking PRV.
Yes, if the pressure gauge reads below 1.0 bar you can repressurise using the filling loop located underneath the ecoTEC Plus or side-mounted on the ecoFIT Start. Bring the gauge to 1.2–1.5 bar, then press and hold the reset button for five seconds. If F22 returns within 48 hours, do not keep resetting; call a Gas Safe registered engineer in Grimsby to diagnose the underlying leak or component failure.
A diagnostic visit and repressurisation costs £70–£90. If the expansion vessel needs recharging, expect £85–£120. A PRV replacement runs £130–£185. iWarm provides fixed, upfront pricing across Grimsby, Cleethorpes, Immingham, Louth, Brigg, Caistor, and Market Rasen with no hidden callout surcharges.
Recurring F22 within 24–48 hours almost always means a slow system leak or a failed component. In hard-water areas like Grimsby and Cleethorpes (180–220 mg/L CaCO₃), limescale scores the PRV seat and degrades the expansion vessel diaphragm, both common failure points after 7–10 years. A Gas Safe engineer should perform a digital manometer pressure-decay test to isolate the fault.
Yes. An annual service includes checking the expansion vessel pre-charge (1.0–1.5 bar), testing the PRV, inspecting the auto-air vent, and topping up system inhibitor such as Fernox F1 at 1% concentration. For homes in Lincolnshire's moderately hard water supply, this helps prevent the limescale build-up that most commonly triggers recurring F22 faults. iWarm's annual service covers all towns from Immingham to Market Rasen.
