How to Diagnose Faulty 2-Port Valves
IMPORTANT INFORMATION: DANGER 230V
This page is for informational purposes only. Do not attempt to work on any electrical circuit or diagnose 2-port valves faults unless you are a competent person. iWarm cannot take responsibility for anybody injuring themselves or anyone else whilst working on any electrical or heating component.
2-Port Valve Wiring and Connections
Standard UK Wiring Colour Codes
For standard 2-port motorised valves used in central heating systems, the wiring colour codes are as follows:
- Brown: Thermostat Switched Live (call for heat signal).
- Blue: Neutral connection.
- Orange: Boiler and pump switched live output (activated via the internal microswitch).
- Grey: Permanent Live feed.
- Green and Yellow: Earth connection for safety.

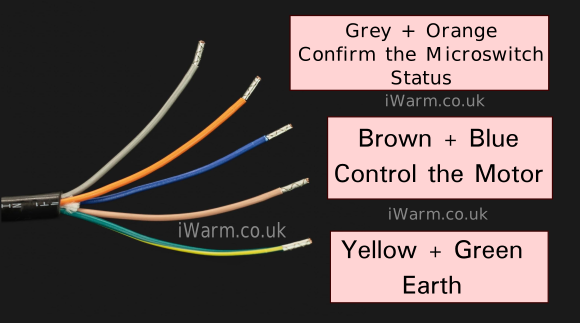

IMPORTANT THEORY: Electrical Wire Groups
The internal wiring of a 2-port valve can be understood as two separate circuits:
- The Brown and Blue wires are responsible for powering the valve's motor, which drives the valve to the open position.
- The Grey (Permanent Live) and Orange (Switched Live) wires are connected to the internal micro-switch, which closes to send a live signal to the boiler and pump once the valve is fully open.
Electrical Testing and Diagnostics
How to Test the 2-Port Valve with a Multi-meter
Testing the 2-Port Valve Motor:
When diagnosing faulty 2-port valves, you'll need to perform a resistance test on the motor of a 2-port valve. Follow these steps for a safe and accurate diagnosis:
- Following safe isolation procedures, disconnect the 2-port valve from the mains electrical supply.
- Set the multi-meter to measure resistance, denoted by the ohms (Ω) symbol.
- Connect the multi-meter probes to the Brown and Blue wires.
- A normal reading for a functional motor is typically between 1k ohms and 3k ohms. A reading of open circuit (O.L) or zero indicates a failed motor.
Testing the 2-Port Valve Micro-switch:
To test the functionality of the internal micro-switch, a continuity or resistance test is required. - Ensure the valve is safely isolated from the mains power supply.
- Connect the multi-meter probes to the Orange and Grey wires.
- Manually operate the valve lever or use a screwdriver to force the valve mechanism open, which in turn should close the micro-switch contacts.
- With the switch in its resting (released) position, the multi-meter should display an open circuit (O.L). When the switch is manually closed and functioning correctly, the multi-meter should show continuity or a low resistance value for that circuit.
Troubleshooting Common Fault Symptoms of a Faulty 2-Port Valve
While a multi-meter provides definitive electrical testing, certain physical symptoms can indicate a broken or faulty 2-port valve, aiding in fault-finding and repair.
- Hot Valve Body: The motor body feeling excessively hot to the touch can indicate the motor is stuck in a powered state.
- Buzzing Noise: A constant buzzing or humming sound from the valve can suggest the motor is straining to operate but is mechanically jammed.
- Lever Movement: Check if the manual lever moves freely when heating is called for. A seized lever or a lever that does not move when power is applied points to a motor or mechanical failure.
