What Does the Vokera Vibe A01 Fault Code Mean?

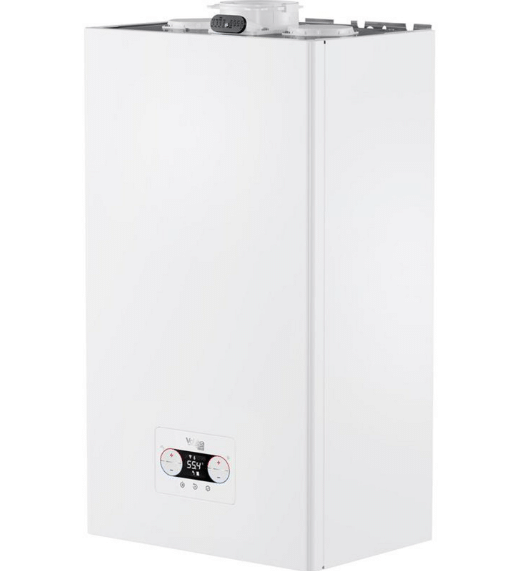

The Vokera Vibe A01 fault code indicates a permanent ignition lockout caused by the boiler's inability to establish or detect a flame during its startup sequence. Across Vokèra Vibe Combi, System, and MAX units, the PCB initiates this safety state after failing to detect an adequate flame rectification current.
This state triggers three immediate functional responses:
- Safety Gas Isolation: The PCB de-energises the gas valve solenoids immediately, isolating fuel delivery to prevent unburned gas accumulation inside the burner casing.
- Pump Overrun Activation: The primary circulating pump engages to dissipate residual thermal energy away from the main heat exchanger.
- System Lockout: The appliance halts the ignition sequence and remains inoperable until manually cleared or resolved via emergency boiler repair.
Diagnosing Vokèra A01: The Three Physical Failure Modes
Scenario 1: No Spark and No Ignition Attempt
The ignition sequence aborts before electrode discharge occurs. This indicates an electrical failure or an unmet safety interlock upstream of the ignition transformer. If the fan fails to achieve its required pre-purge speed or the hall-effect sensor fails to confirm rotation, the PCB safely halts operation before energising the electrode. Alternatively, a failed PCB ignition relay, cracked ceramic insulation, or a disconnected high-tension (HT) lead prevents high voltage from bridging the spark gap.
Scenario 2: Continuous Sparking with No Flame Ignition
The electrode sparks continuously across the burner, but combustion never initiates. This points directly to fuel starvation or combustion chamber flooding. Common root causes include an isolated gas cock, an un-purged gas run, a defective meter regulator, or seized gas valve solenoids failing to open when powered. In winter conditions, an un-insulated external condensate pipe freezing solid will back acidic effluent up into the heat exchanger, submerging the burner mesh and extinguishing the spark.
Scenario 3: Flame Lights for 2–3 Seconds Then Cuts Out
The burner lights immediately upon spark activation but cuts out within two to three seconds. This confirms a flame supervision failure rather than a fuel supply issue. The flame establishes, but the ionisation probe fails to transmit the required DC micro-amp rectification signal back to the PCB. Heavy carbonation on the electrode surface, physical misalignment outside the flame envelope, or a high-resistance boiler chassis earth breaks this circuit. Accurate boiler fault diagnosis verifies whether the probe simply requires refurbishment or the sensing circuit on the PCB has drifted out of tolerance.
Safe Homeowner Checks Before Booking an Engineer
- Verify property gas supply: Test other natural gas appliances, such as a gas hob, to confirm fuel availability and rule out a closed emergency control valve (ECV) or a tripped prepayment meter regulator.
- Inspect the condensate pipe: During sub-zero conditions, check external 20.5mm or 32mm plastic discharge runs for ice blockages that cause liquid condensate to back up into the combustion chamber.
- Execute a single reset: Turn the mode selector switch anti-clockwise to "RESET" for two seconds, then release it back to the standard heating or hot water position.
- Halt further resets: Do not attempt more than two consecutive resets. Excessive ignition cycles pump unburnt fuel into the flue assembly and induce electrical fatigue on the PCB ignition transformer.
Opening the boiler casing without valid Gas Safe registration is illegal under the Gas Safety (Installation and Use) Regulations 1998 (GSIUR). If these non-invasive steps fail, the appliance requires diagnostic investigation or an annual boiler service from a qualified engineer.
What a Gas Safe Engineer Will Test to Resolve A01
Systematic fault-finding by a Gas Safe registered engineer isolates the root cause across four mandatory diagnostic stages:
- Dynamic Gas Pressure Verification: A digital manometer connected to the boiler inlet test nipple verifies standing versus working pressure. Dynamic working pressure must maintain a minimum of 16.5 mbar under full firing rate; drops below this threshold confirm upstream supply restrictions, meter regulator failure, or undersized supply pipework in breach of BS 6891.
- Electrode Assembly Inspection: The combustion chamber is accessed to examine electrode geometry. The engineer verifies the 3.5 mm spark gap clearance, inspects ceramic insulation sleeves for hairline fractures causing HT tracking to earth, and abrades oxide deposits to restore the required 1.0 to 1.5 µA DC rectification current.
- Gas Valve Solenoid Testing: Coil resistance across terminals EV1 and EV2 is measured with a multi-meter. Readings outside standard tolerance (typically 800 Ω to 1,200 Ω) or open circuits confirm solenoid failure, meaning the valve remains seated despite receiving PCB ignition voltage.
- Condensate Siphon Inspection: The internal trap is dismantled and flushed to remove magnetite or combustion debris. A restricted siphon backs acidic condensate directly into the burner tray, extinguishing the flame.
Vokèra A01 Repair Costs & Component Replacement Benchmarks
Expected remedial costs depend on whether the lockout stems from an external environmental blockage, worn consumable service items, or electronic component failure. Below are current UK trade benchmarks for parts and labour.
| Component / Repair Task | Typical Part Cost | Total Cost (Including Labour & Testing) |
|---|---|---|
| Ignition/Detection Electrode Kit | £25 – £45 | £85 – £140 |
| Gas Valve Replacement & FGA Calibration | £85 – £130 | £190 – £290 |
| Printed Circuit Board (PCB) | £125 – £185 | £240 – £360 |
| Condensate De-ice & Pipe Reroute | £15 – £35 | £80 – £130 |
When managing an ageing Vokèra Vibe approaching or exceeding 12 years of service, major component failures require economic triage. Compounding remedial expenses, such as renewing both a seized gas valve and the main PCB, often make commissioning a new boiler installation the more viable long-term commercial investment.
FAQs on Vokera A01 Fault Codes
Why does my Vokèra Vibe boiler fire for 3 seconds and then show A01?
If the burner ignites but shuts down after 2 to 3 seconds displaying code A01, the boiler has failed flame rectification. The flame is physically present, but the ionisation electrode cannot detect the micro-amp electrical current through the flame to ground. This is typically caused by a soot-fouled or corroded sensing probe, cracked electrode insulation, or a faulty flame-sensing circuit on the main PCB.
Can a frozen condensate pipe cause a Vokera A01 fault code?
Yes. If your external condensate drainage pipe freezes during sub-zero temperatures, condensation backs up into the internal siphon and secondary heat exchanger. On Vokèra Vibe models, this water will submerge the burner base and wet the ignition and detection electrodes, preventing spark generation or smothering the flame, which triggers an A01 ignition lockout.
How do I reset my Vokèra Vibe boiler after an A01 lockout?
Turn the main selector dial anti-clockwise to the 'RESET' position, hold it for approximately two seconds, and release it back to the normal heating/hot water mode (the knob is spring-loaded). On digital Vibe MAX screens, press and hold the Reset icon. If the boiler does not clear the code after two attempts, discontinue resetting to avoid flooding the combustion chamber with raw gas or damaging the ignition unit.
Is it legal to fix a Vokera A01 fault code myself?
Homeowners are legally restricted to checking external controls, confirming gas supply at other appliances, thawing exposed plastic condensate runs, and attempting a panel reset. Removing the outer boiler case to inspect the electrodes, gas valve, burner, or PCB enters the room-sealed combustion chamber. Under Regulation 26 of the Gas Safety (Installation and Use) Regulations 1998, this work must strictly be completed by a Gas Safe registered engineer.
